Treppiede tornello Gate
Created with Pixso. 304 Stainless Steel Revolving Pedestrian Turnstile Gate 3 Arm Multi - Alarm

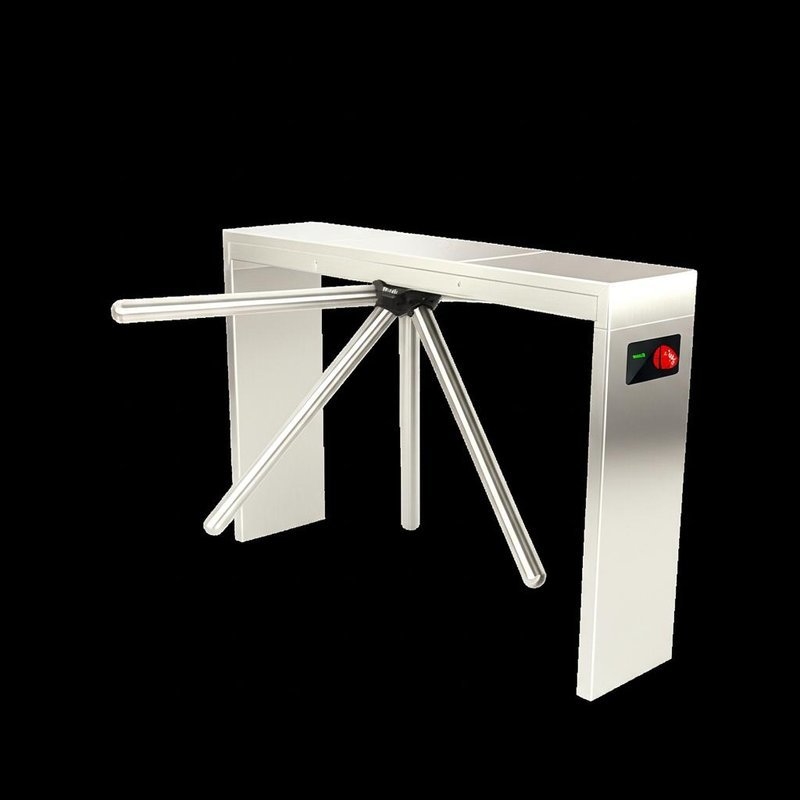

304 Stainless Steel Revolving Pedestrian Turnstile Gate 3 Arm Multi - Alarm

Marchio: RONA
Numero di modello: RNCFH 138
Moq: 1 unità
prezzo: negotiable
Tempo di consegna: 7-15 giorni di lavoro
Condizioni di pagamento: L/c, t/t
Informazioni dettagliate
Luogo di origine:
Cina
Certificazione:
CE/ISO9001
Materiale:
304 acciaio inossidabile
Tipo di motore:
Valore del solenoide
Misurare:
1600 mm*280 mm*H990 mm
Mtbf:
10 milioni di volte
Velocità di passaggio:
25-30 persone/nino
Larghezza del passaggio:
550 mm
Garanzia:
Un anno
Imballaggi particolari:
imballaggi in cartone e in legno
Capacità di alimentazione:
Unità 2000 al mese
Evidenziare:

304 stainless steel turnstile gate

,

3 arm pedestrian turnstile

,

alarm tripod turnstile gate

Descrizione del prodotto

304 Stainless Steel Revolving Pedestrian Turnstile Gate 3 Arm Multi - Alarm

Ticket Tripod Gates are access control devices commonly used in public places such as tourist attractions, sports stadiums, museums, subway stations, and airports. By combining advanced electronic technology with mechanical equipment, they automate ticket validation and access control, making them an important tool for modern venue and scenic area management.



Functions
1.Ticket verification and express entry:

  • Ticket scanning and identification: Through the built-in code scanner or card reader, the ticket gate can quickly scan the QR code and barcode on the ticket or read the IC/ID card information to achieve rapid ticket verification.
  • Verification accuracy: Use advanced technical means to verify tickets, effectively prevent ticket forgery and counterfeiting, and ensure the legitimacy of visitors entering the park.
  • Quick entry: Once the ticket verification is passed, the tripod gate will automatically open, allowing visitors to pass quickly and reducing waiting time in line.

2.Customer flow monitoring and management

  • Real-time monitoring: The ticket gate can monitor the flow of people in real time, helping managers to grasp the passenger flow situation in the scenic spot in a timely manner.
  • Data analysis: By collecting information about passing people, such as passing time, frequency, etc., it provides data support for passenger flow prediction, resource allocation and operation management of scenic spots.

3.Security control

  • Identity verification: Combined with biometric technologies such as facial recognition and fingerprint recognition, ticket gates can further improve security and ensure that only legitimate tourists can enter the scenic spot.
  • Anti-tailgating function: Some advanced ticket gates also have an anti-tailgating function to prevent unverified people from following verified people.

4.Flexible configuration and adaptability

  • Multiple identification methods: Ticket turnstiles usually support multiple identification methods, such as QR code/barcode identification, fingerprint identification, IC/ID card identification, ID card identification, face recognition, etc. Scenic spots can be flexibly configured according to their own management needs.

5.Intelligent management and services

  • Connecting with the ticketing system: The ticket gate can be seamlessly connected with the ticketing system of the scenic spot to achieve real-time data synchronization and improve management efficiency.



Parameters

Item Full-auto Semi-auto
Size: 1600mm*280mm*H990mm
Bar length : 510(mm)
Bar Driving model : Digital
Rolling direction : Bi-direction,unidirectional(optional)
Lamp indication : Passing way indication Passing way indication
Mechanism core : Magnetic valve
Extensive function : Counter ,LED digital display
Work condition : Indoor/outdoor
Temperature: -20℃~70℃
Anti-panic : Drop when power off, raise automatically when power on Drop when power off, raise manually when power on
Card-reading window : Standard installation holder or customized
Opening time : 0.2s 0.2s
Passing speed : 30persons /min 25 persons /min
Working power: 80W 50W
Working voltage: AC220±10%V 50±10%HZ AC220±10%V 50±10%HZ
Input interface : Relay, dry contact signal or 12V pulse signal, pulse width>100ms,drive current>10mA
Communication port : RS485 ,connected with computer, remote control



Packaging

304 Stainless Steel Revolving Pedestrian Turnstile Gate 3 Arm Multi - Alarm 0
